The bay outside my window is a shader now

A few days ago I opened earendil.com and forgot why I came. Behind the landing page there’s a live fragment shader: a raymarched ocean rolling under a night sky, stars, waves, the whole thing computed per pixel while you read.

I watched it longer than I’ll admit, closed the tab, and did the only reasonable thing. Two days later my homepage had a shader of its own.

Then Lighthouse gave my static Hugo site a performance score of 25 and measured two and a half minutes of blocked main thread. The scene ran smoothly on every device I had tested. In the lab, it moved at a geological frame rate.

The scene wasn’t slow. It was running on the wrong kind of silicon. But that comes later. First, the bay.

But not their scene. If my homepage renders a body of water, it should render the one outside my window. I live in Herceg Novi, at the mouth of the Bay of Kotor. Green Luštica headlands on the right, the rocky Orjen massif behind, town lights strung along both shores at night. That view is one of the reasons I’m here. It deserved the pixels.

Paint the bay, not a demo

The rule I set early: match the photographs, not “pretty shader” defaults. Every WebGL demo on the internet converges on the same teal water and purple sky. The actual Adriatic on a July morning is different. The water is a deep azure with a calm swell, the headlands are muted green under haze, and the far ranges are gray crags, not gradients.

Reference photograph

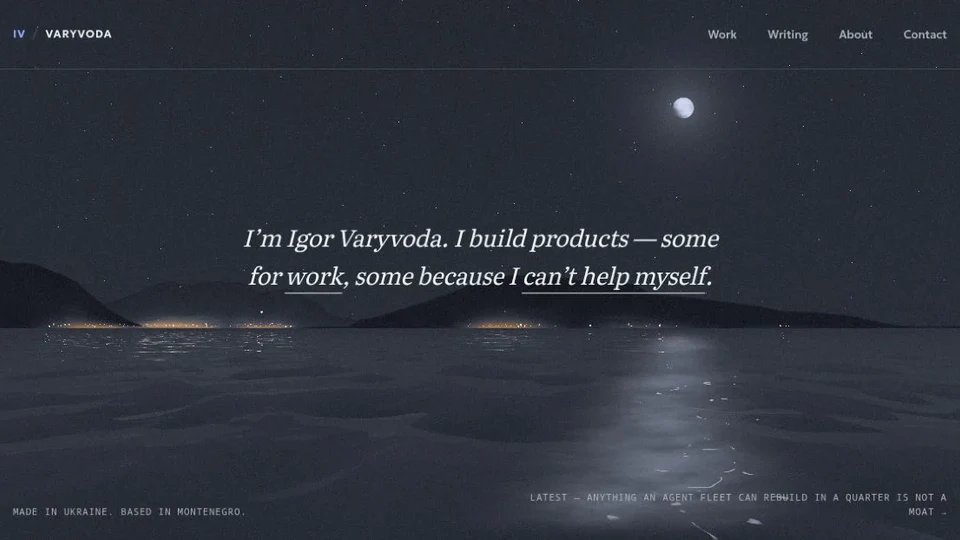

Live shader · dark mode

The mountain textures are crops of my own Nikon photos of those exact slopes, baked into an atlas. A 512-pixel mask says which ridge is near and which is far. The water uses afl_ext’s ocean technique. Procedural noise makes the clouds. A ship crosses the bay and leaves smoke. The sun spends its first eight minutes climbing off the ridge line, and the light relaxes as it rises.

There are two scenes, really. The default is night: a deep indigo duotone with a gibbous moon and warm golden light necklaces along both shores, because the real town at night is sodium lamps, not gray noir. Day is that backlit sunrise.

Full disclosure: day mode is the weaker of the two right now. The night scene is where the love went, and I know it. The sunrise gets its pass later.

My contribution was reference photos and rejection

I should be honest about the process, because it’s the same one I keep writing about: I didn’t type the GLSL. Codex built the first version, and Claude did the long art-direction grind that followed. The file is about 1,900 lines. My contribution was reference photos and rejection. A lot of rejection.

That sounds like the easy part until the output is technically correct and visually wrong. The models could make a moon, a sun and a string of lights. They could not decide whether any of them belonged over this bay.

The first moon was a flat gray circle. A moon you’d accept in a browser reads as real only with maria, a soft terminator, and a halo that fades over the disc instead of around it. Meanwhile the night reference photo had a huge blown-out moon. It took me a moment to notice that was a long-exposure artifact. The camera lied. We kept its city lights and threw away its moon.

The sun was worse. The real problem was tone mapping. Through an ACES curve the bright corner of the sky clips to white, so making the sun brighter does literally nothing. A sunrise reads only when you darken and saturate everything around the core, then let a small disc kiss the ridge line and dissolve into glare and rays. Contrast comes from replacing tone, not adding light.

The town lights started out as a uniform silver string, dull, all the same size. Real towns have a hierarchy: hundreds of dim specks, a layer of streetlamps, a few rare floodlights that bloom, plus red beacons on the summits. Three size tiers and a warm-to-cool mix later, the shoreline looked inhabited.

One pale halo along the far crest survived five fixes because three causes were stacked on top of each other. Every fix removed one contributor and the halo stayed. If a visual bug survives multiple correct-looking fixes, stop assuming one cause.

Click the moon

The sun and the moon are the theme toggle. Click the moon and morning comes. Click the sun and night falls again. A small hit test in JavaScript mirrors the shader’s own coordinates, so the clickable spot is exactly where the disc is drawn.

It worked perfectly in every local test and was dead in production for a day. The click handler had shipped; the second file it depended on sat uncommitted on my disk, and a defensive if made the failure silent. A feature spans files, and it isn’t done until every one of them is committed. Check git status against the feature, not against your memory.

The benchmark was the user I forgot

The Lighthouse Total Blocking Time metric reported 152,350 ms. The Chrome trace around the same audit showed 174 seconds of main-thread activity. Different measurements, same catastrophe: a static page had become unusable for minutes.

In this audit, Chrome reported its renderer as SwiftShader. WebGL had not failed; it had quietly fallen back to a software rasterizer and started running the fragment shader on the CPU. The mobile audit then throttled that CPU four times. Frames that took milliseconds on my tested devices took seconds in the lab.

My first reaction was to blame the lab. Real visitors have GPUs. The scene even watches its own frame times on real hardware and drops render resolution when things get slow. I briefly considered sniffing the Lighthouse user agent and handing the bot a quiet page.

Then I started listing who else browses without a GPU. Virtual machines. Remote desktop sessions. Corporate laptops with acceleration disabled by policy or by a broken driver. For all of them, WebGL “works” exactly the way it works for Lighthouse: silently, on the CPU, at a geological frame rate.

Lighthouse wasn’t lying about my site. It was impersonating my worst-case visitor with perfect accuracy.

That changed the fix. Don’t detect the auditor. Ask WebGL what it is actually rendering on, and believe the answer:

var info = gl.getExtension("WEBGL_debug_renderer_info");
var renderer = String(gl.getParameter(
  info ? info.UNMASKED_RENDERER_WEBGL : gl.RENDERER
));
if (/swiftshader|llvmpipe|softpipe|software|basic render/i.test(renderer)) {
  canvas.classList.add("ambient-canvas-fallback");
  var lose = gl.getExtension("WEBGL_lose_context");
  if (lose) lose.loseContext();
  return;
}

On my desktop the renderer string says ANGLE (NVIDIA GeForce RTX 3060 Ti ...) and the scene runs. On Lighthouse’s hardware it says SwiftShader, the regex matches, and the page takes the CSS gradient fallback it already had for browsers without WebGL. Twelve lines, and they aren’t a cheat. A visitor on a GPU-less VM gets a page that loads instantly instead of a slideshow.

That bailout took Total Blocking Time from 152,350 ms to 40 ms. It also cut the lab download from 1,085 KiB to 363 KiB, because a scene that never starts never downloads its textures.

Testing the renderer I had just banned

My screenshot and benchmark tooling also runs headless Chromium, which means it runs SwiftShader, the renderer I’d just told the site to refuse. The first test after shipping the bailout produced a beautiful screenshot of the fallback gradient. The detection now has an escape hatch (?atmosphere=force), and every test URL in my notes carries it.

Its first frame takes six to ten seconds because linking the shader program blocks the main thread. My click-the-moon tests kept dying: the click landed during the stall, queued, and evaporated on navigation. A real GPU links the same program in milliseconds. The tests now wait for the scene’s first-frame marker before touching anything.

The other 66 points

The shader bailout did not take the score from 25 to 91 by itself. The rest was less cinematic:

• Three render-blocking requests disappeared. I self-hosted normalize.css and both font families, then concatenated the CSS into one fingerprinted, same-origin file.
• A 133 KB screenshot became 47 KB. Hugo now generates the right srcset size for its 600-pixel slot. I run image optimization tooling for a living, so getting this wrong on my own homepage was a useful genre of embarrassment.
• The home link became speakable. It displayed “IV Varyvoda” while its accessible name said “Varyvoda home.” Voice-control users say what they see; now the two match.

What the score was saying

The lesson is not “Lighthouse is unfair to WebGL,” and it’s definitely not “chase 100 at any cost.” The 25 was a proxy for a hardware class I’d forgotten existed, reported by the one visitor honest enough to sit through all 174 seconds and write it down. The right response was to detect the capability, not the auditor, and serve each class of hardware a page it can actually run.

Go click the moon. The sun climbs off the ridge, the headlands turn green under the haze, and Lighthouse never sees any of it. Both of those are correct.
